Ceramic Hybrid Bearing 6805
For more information pls email to:info@jxtcbearing.com More choice:
Product Details

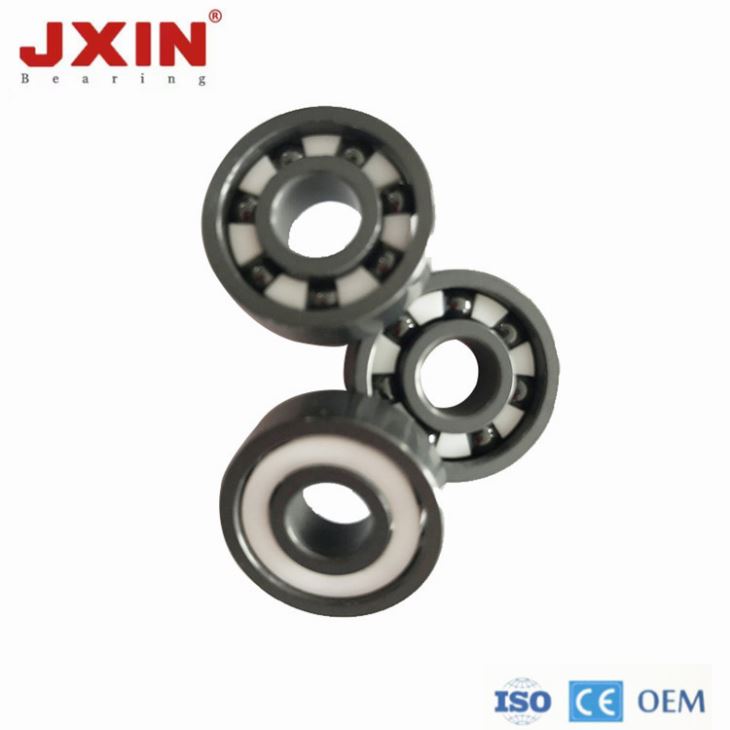

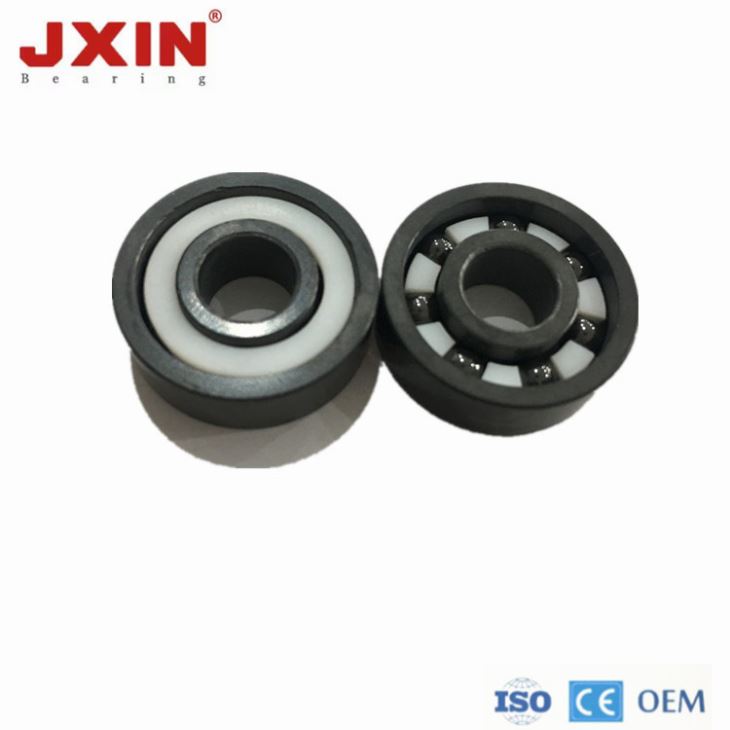

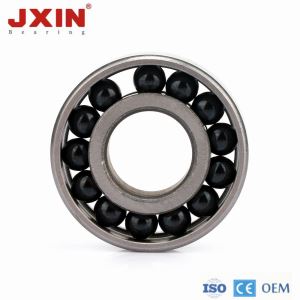

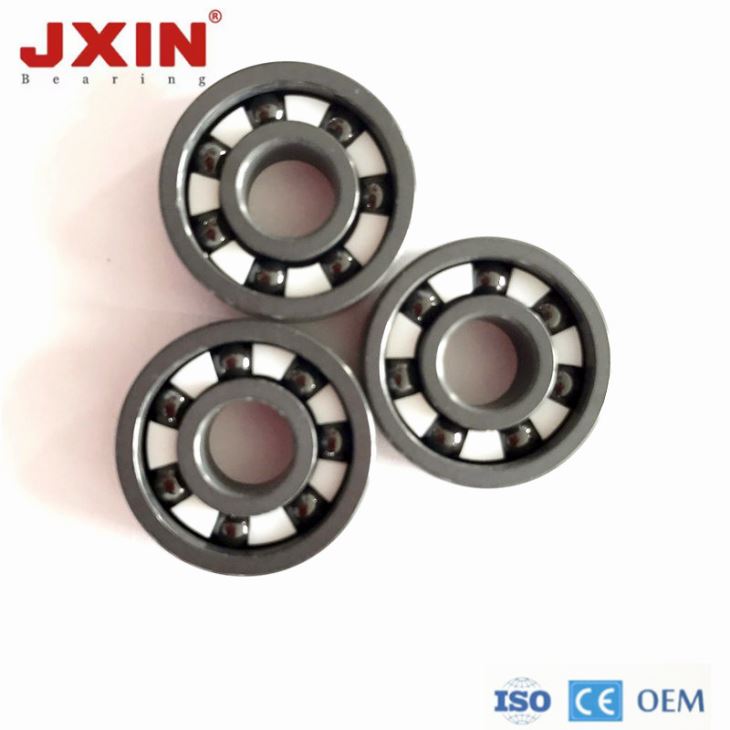

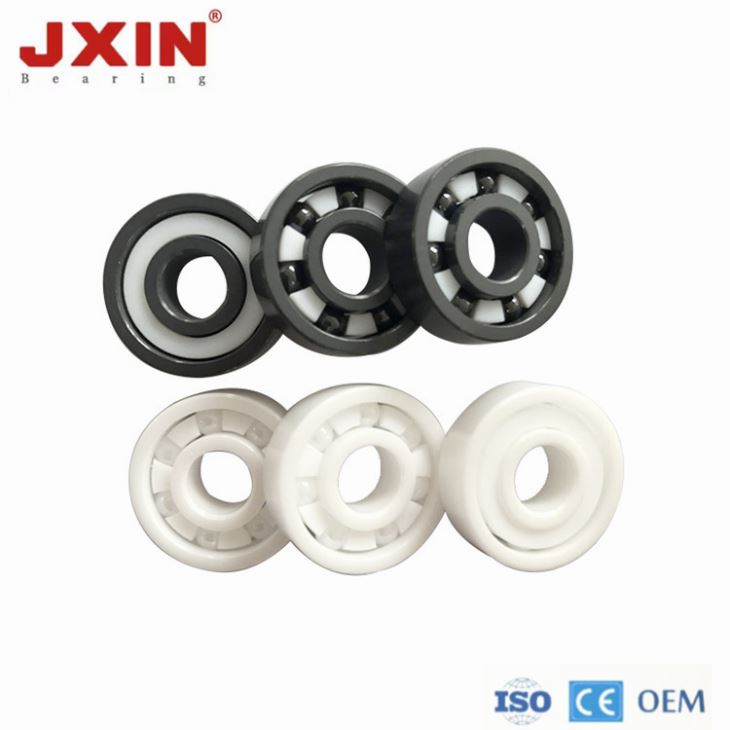

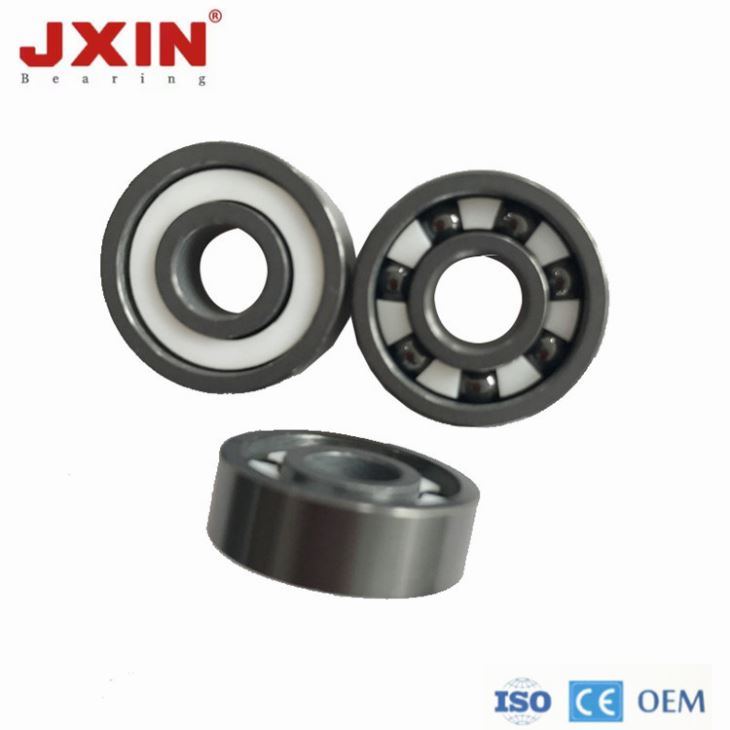

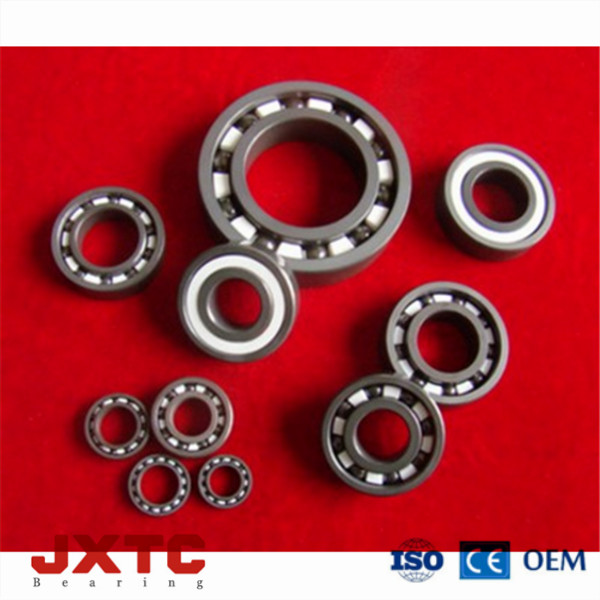

Ceramic Hybrid Bearing 6805
| Model Number | 6001CE |
| d | 12mm |
| D | 28m |
| B | 8mm |
| Mass | 0.022 kg |
| Material | Full Si3N4 ceramic |
| Package | plastic bag+single box |
| Vibration Level code | V1,V2,V3,V4 |
| Precision | P0,P6,P5,P4,P2 |
| Cage Type | PTFE |
| Delivery Detail | 3-10 days upon receipt of deposit |
| Shipping | Express: DHL Fedex EMS /By Sea/By Air |
For more information pls email to:info@jxtcbearing.com More choice:
| 0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
